Product Introduction

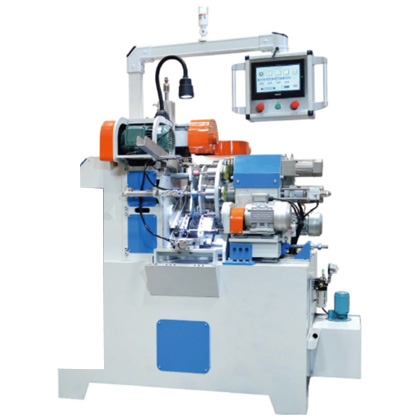

This machine is a special equipment for textile rubber factory. It has multiple functions. It can simultaneously solve the three functions of aluminum-lined rubber roller chamfering, chamfering the inner angle and grinding the outer circle in the rubber roller production process. The whole machine is designed as a whole, computer-programmed working process, the feed is controlled by servo, the grinding wheel is automatically cleaned and trimmed. and the three processes of one clamping are completed simultaneously. The equipment runs smoothly, the rubber roller processing consistency is good, the machine occupies a small area, the processing output is high, and the factory product quality and work efficiency are improved. (Invention patents, counterfeiting must be punished)
This machine is a special equipment for textile rubber factory. It has multiple functions. It can simultaneously solve the three functions of aluminum-lined rubber roller chamfering, chamfering the inner angle and grinding the outer circle in the rubber roller production process. The whole machine is designed as a whole, computer-programmed working process, the feed is controlled by servo, the grinding wheel is automatically cleaned and trimmed. and the three processes of one clamping are completed simultaneously. The equipment runs smoothly, the rubber roller processing consistency is good, the machine occupies a small area, the processing output is high, and the factory product quality and work efficiency are improved. (Invention patents, counterfeiting must be punished)
Diameter range of processing rubber roller: 026-045mm Range of processing rubber roller length: 24-32mm Machining accuracy: 0.05mm
Processing rubber rollers per hour: 450
Rated power: 6KW
Rated working pressure: 0.6Mpa
Machine size: l .7m x 2.0m x l .9m
Total weight of the machine: 1 300kg

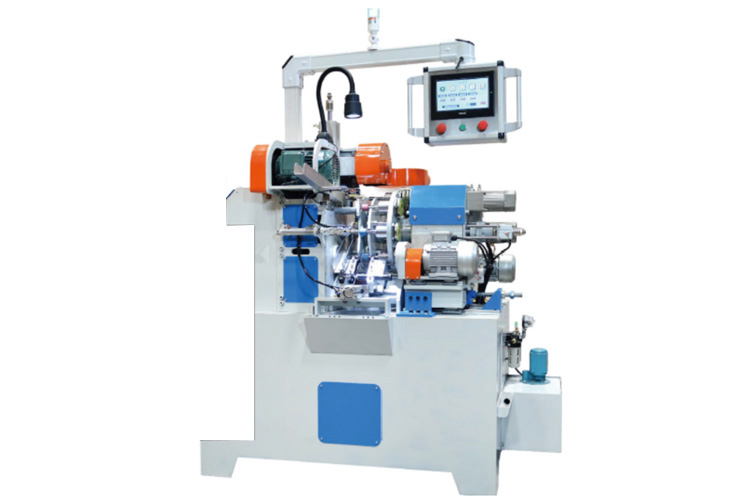

Product Display
