Product introduction
YJ210-170 pendulum arm is a new generation of fine yarn spring pendulum arm, which is fixed in six directions. The pendulums frame on the tubular strut shaft can be used for the front and lower rollers to the hexagonal tubular strut shaft with a large center distance, and the maximum center distance can be 240mm. The pendulum arm frame is compatible with both ordinary ring spinning and compact spinning, working on spinning both pure and mixed yarns with of less than 80mm.

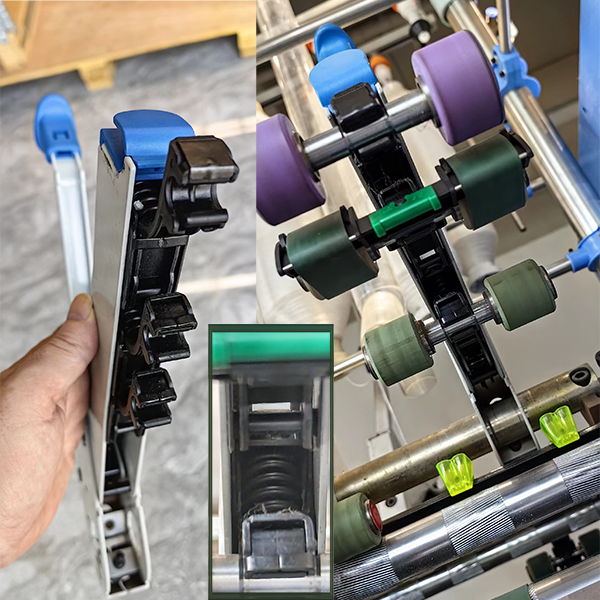

Structural features

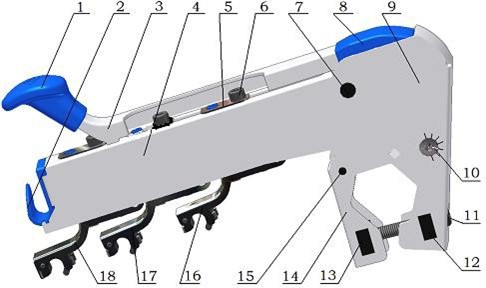

YJ210-170 pendulum arm frame structure diagram, as shown in Figure 1.
Figure 1 Structure diagram of YJ210-170 pendulum arm frame
1. pinchhand ⒉velvet rollerframe ⒊handle ⒋pendulum body ⒌pads ⒍screws ⒎pendulum shaft ⒏handlecover ⒐pendulum arm seat ⒑eccentricpins ⒒fixing screws ⒓squareblocks ⒔squarescrews ⒕ clampingseats ⒖clamping seat shafts ⒗post-compression joints ⒘medium-compression joints ⒙pre-compression joints
Technical features

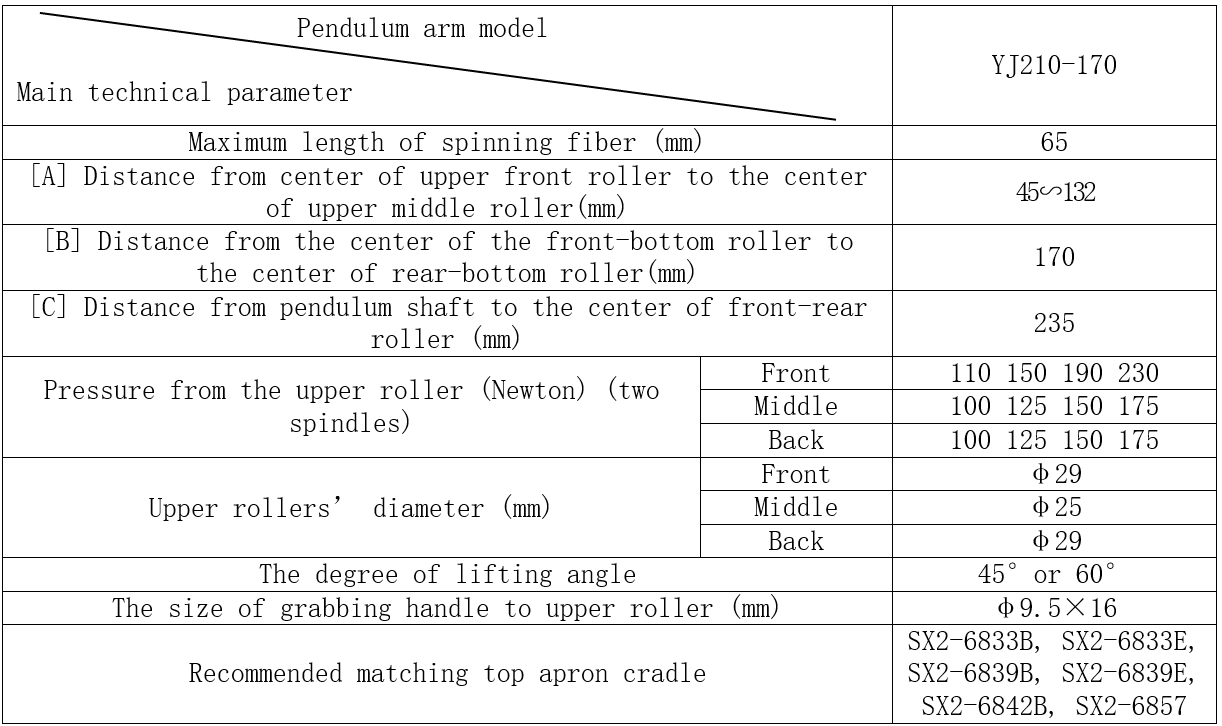

The main technical parameters are shown in Table1
Table 1. The main technical parameters

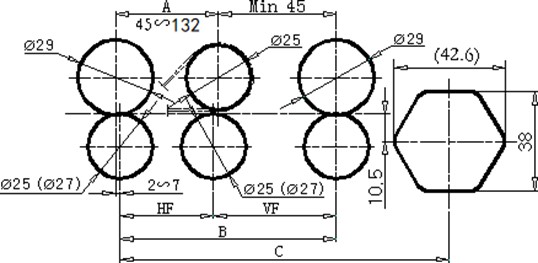

The hauling distance is demonstrated in Table 2
Table 2. hauling distance diagram
